Testing Framework¶
Contents
CWatM has a pyTest suite, but it is different from others. We have some bigger dataset to run especially meteorological dataset and we want to be sure that CWatM is running with different resolutions, with diffrent projections, for diffrent regions, with diffrent sub-modules.
Note
Please have a look at the folder: pytest on our github: https://github.com/iiasa/CWatM
Purpose¶
A comprehensive pytest-based testing framework for the CWatM (Community Water Model) hydrological modeling system. This module provides automated testing capabilities for multiple model configurations, scenarios, and validation workflows including testing different settings files for different resolutions, different basins and different input and output options in order to make sure that CWatM is properly running after each change. | Folder: pytest | Program: test_cwatm3.py | Requirement: libraries pytest and pytest-html | Optional: pip install pytest-codecov
Note
Execute:
pytest test_cwatm3.py –html=C:/work/CWATM/report1.html
–settingsfile=test_py_cwatm2.txt –cwatm=C:/work/CWATM/run_cwatm.py
Where:
–html=C:/work/CWATM/report1.html: results of test are written into this HTML file
–settingsfile=test_py_cwatm2.txt: settings file to tell which tests are executed
–cwatm=C:/work/CWATM/run_cwatm.py: executable of CWatM
Test Types and Execution Modes¶
The framework supports different test execution modes based on keywords in the settings file path:
“error”: Tests expected failure scenarios with quiet mode execution
“calibration”: Runs calibration workflow with meteorological data loading and warm-start functionality
“checkmap”: Validates model configuration without full execution - configuration validation only
Default mode: Performs standard model run with full execution and result validation
Configuration File Structure¶
The test configuration file uses a structured format to define test scenarios:
base_setting: Path to the base configuration template
name: Test scenario identifier and description
runtest: Enable/disable specific test groups (TRUE/FALSE)
test_value: Enable discharge value validation
path_*: System paths for different components (system, root, init, output, maps, meteo)
header: Test title for reporting
description: Detailed test description
set_save: Output filename for the generated settings file
changes: Parameter modifications in “parameter = value” format
adds: Additional configuration lines to append
last_value: Expected discharge value for validation
Testing Workflow¶
CWatM can be run with different resolutions, different basins, and different options. Each testing scenario uses a settings template and varies different options during the test. The framework follows this workflow: #. Parse command line arguments for settings file and CWatM executable paths #. Read and parse the test configuration file to extract test scenarios #. For each enabled test scenario:
Generate modified settings files with parameter changes
Execute CWatM with the appropriate test mode
Validate results based on test type
Record success/failure status
Generate comprehensive HTML test report with pytest
Code Quality and Standards¶
The test_cwatm3.py module has been enhanced with:
PEP 8 Compliance: Code formatted according to Python PEP 8 standards with 120-character line limit
Comprehensive Documentation: All functions documented using numpydoc format with detailed parameter descriptions
Preserved Functionality: All original variable names, function names, and comments maintained
Enhanced Readability: Improved code structure and formatting for better maintainability
Usage Examples¶
Basic execution with HTML reporting:
Note
pytest test_cwatm3.py –html=pytest_report_cwatm.html –settingsfile=__cwatm_pytests_settings.ini –cwatm=../run_cwatm.py
Extended execution with code coverage:
Note
pytest test_cwatm3.py –html=pytest_report_cwatm.html –cov=cwatm –cov-report=xml –settingsfile=__cwatm_pytests_settings.ini –cwatm=../run_cwatm.py
The framework provides robust validation for CWatM hydrological model testing across multiple scenarios, ensuring model reliability and consistency across different configurations and use cases.
Files and folders¶
output: Folder for CWatM testing results e.g. output/rhine
init: Folder for CWatM warm-start files
settings: Folder with settings templates and created settings files e.g. Settings/30min/global_30min/settings_global_30min.ini
metaNetcdf.xml: xml file with metadata for NetCDF files
test_cwatm3.py, conftest.py, pytest.ini: Program files
test_py_cwatm1.txt,.. Settings files
Testing CWatM¶
CWatM can be run with different resolutions, different basins, and different options. Each testing e.g. for the Rhine basin 30 arcmin is using a settings template and varies different options during the test. Examples for tests are given below, but other tests can be included. Tests are executed using the template settings file as a start and then tests are repeated using different options.
Results¶
Results of the testing are written into the report.html (–html=C:/work/CWATM/report1.html) This report shows an overview of passed, failed and skipped test and the details of each test.

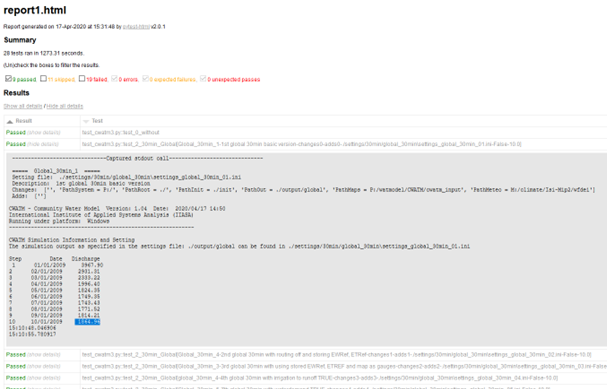

Figure 1: Screenshot of a test report page
Example of a pytesat settings file:
1# Tests for CWatM with pytest
2# ---------------------------
3
4[Introduction]
5# What to test?
6
7# 1 test mask
8# 1.1 mask as .tif
9# 1.2. mask as box
10# 1.3 mask as outlet lon/lat of a basin
11
12# 2 test gauges
13# 2.1 as list
14# 2.2 as map
15
16# 3 Options
17# 3.1 includeIrrigation = False
18# 3.2 preferentialFlow = False
19# 3.3 CapillarRise = False
20# 3.4 includeRunoffConcentration = True
21# 3.5 includeWaterBodies = True => 3.1 - 3.5 together
22# 3.6 includeWaterDemand = True
23# 3.7 calc_evaporation = True
24# - store OUT_MAP_Daily = ETRef, EWRef before!
25# 3.8 includeRouting = False
26# (some more calc_environflow = True, inflow = True, waterquality = True
27
28# 4 Timing
29# 4.1 more than 1 year
30# 4.2 with SpinUp
31# 4.3 save initital
32# 4.4 load initial
33
34# 5 outputs
35# 5.1 with tss output for daily, monthly, yearly
36# 5.2. with map output for daily, monthly, yearly
37# 5.3 with some 'exotic output
38
39[How_to_execute]
40# ------------------------------------------------------------------------------------
41# Execute
42# pytest test_cwatm3.py --html=C:/work/CWATM/report1.html --settingsfile=test_py_catwm2.txt --cwatm=C:/work/CWATM/run_cwatm.py
43
44[Tests]
45# True is the tests for this section should be done
46runtest: Rhine_30min True
47runtest: Rhine_30min_add False
48runtest: Error_30min False
49runtest: global_30min False
50runtest: Rhine_5min False
51runtest: Niger_5min False
52runtest: Ebro_Wastewater_5min False
53runtest: Otta_1km False
54runtest: Bhima_30sec False
55runtest: Burgenland_1km_modflow False
56runtest: UpperDanube_1min False
57runtest: Morava_1min False
58runtest: Tisa_1min False
59runtest: Calibration False
60runtest: Check_30min False
61
62# True is test should compare last discharge with given number, False is test should look for -no error- execution of run
63test_value: False
64
65[------------------------------------------------]
66#--------------------------------------------------------------------------------------
67# --------------------
68[30min_- Rhine]
69# ---------------------
70# 30 min versions
71 # Rhine
72 base_setting: ./settings/30min/rhine_30min/settings_rhine_30min.ini
73 name: Rhine_30min
74 path_system: P:
75 path_root: ./
76 path_init: ./init
77 path_out: ./output
78 path_maps: P:/watmodel/CWATM/cwatm_input_isimip3
79 path_meteo: P:/watxene/ISIMIP/ISIMIP3a/InputData/climate/obsclim_updated/GSWP3-W5E5
80
81 # 1st Rhine 30min
82 header: Rhine_30min_1
83 description: 1st Rhine 30min basic version
84 set_save: settings_rhine_30min_01.ini
85 changes:
86 adds:
87 last_value: 4.22
88 # 2nd setup Rhine
89 header: Rhine_30min_2
90 description: 2nd Rhine 30min with box as mask and basic outputs
91 set_save: settings_rhine_30min_02.ini
92 changes: MaskMap = 14 12 0.5 5.0 52.0
93 adds: OUT_TSS_Daily = discharge; OUT_MAP_Daily = discharge
94 last_value: 4.22
95 # 3rd setup Rhine
96 header: Rhine_30min_3
97 description: 3rd Rhine 30min with location as mask
98 set_save: settings_rhine_30min_03.ini
99 changes: MaskMap = 6.25 51.75
100 adds: OUT_TSS_Daily = discharge
101 last_value: 4.22
102 # 4th setup Rhine
103 header: Rhine_30min_4
104 description: 4th Rhine 30min with routing off and storing EWRef, ETRef
105 set_save: settings_rhine_30min_04.ini
106 changes: PET_modus = 3; includeRouting = False; StepEnd = 730
107 adds: OUT_MAP_Daily = ETRef, EWRef
108 last_value: 4.20
109 # 5h setup Rhine
110 header: Rhine_30min_5
111 description: 5th Rhine 30min with using stored EWRef, ETREF
112 set_save: settings_rhine_30min_05.ini
113 changes: calc_evaporation = False; StepEnd = 365; reportOldTss = True
114 adds: OUT_TSS_Daily = discharge
115 last_value: 4549.75
116 # 6h setup Rhine
117 header: Rhine_30min_6
118 description: 6th Rhine 30min using inflow
119 set_save: settings_rhine_30min_06.ini
120 changes: inflow = True; calc_evaporation = False; StepEnd = 40; In_Dir = $(FILE_PATHS:PathOut); InflowPoints = 11.25 49.75;QInTS = discharge_daily.tss
121 adds: OUT_TSS_Daily = discharge
122 last_value: 99999.99
123 # 7th setup Rhine
124 header: Rhine_30min_7
125 description: 7th Rhine 30min with irrigation to runoff TRUE
126 set_save: settings_rhine_30min_07.ini
127 changes: calc_evaporation = False; includeIrrigation = True; preferentialFlow = True; CapillarRise = True; includeRunoffConcentration = True; includeWaterBodies = True
128 adds: OUT_TSS_Daily = discharge; OUT_MAP_Daily = discharge
129 last_value: 16.62
130 # 8th setup Rhine
131 header: Rhine_30min_8
132 description: 8th Rhine 30min with waterdemand TRUE
133 set_save: settings_rhine_30min_08.ini
134 changes: calc_evaporation = False; includeIrrigation = True; preferentialFlow = True; CapillarRise = True; includeRunoffConcentration = True; includeWaterBodies = True; includeWaterDemand = True; StepEnd = 40
135 adds: OUT_TSS_Daily = discharge
136 last_value: 443.03
137 # 9th setup Rhine
138 header: Rhine_30min_9
139 description: 9th Rhine 30min waterdemand TRUE, SpinUp, and save initial
140 set_save: settings_rhine_30min_09.ini
141 changes: calc_evaporation = False; includeIrrigation = True; preferentialFlow = True; CapillarRise = True; includeRunoffConcentration = True; includeWaterBodies = True; includeWaterDemand = True; StepEnd = 366; SpinUp = 20/01/2000; save_initial = True; StepInit = 31/12/2000
142 adds: OUT_TSS_Daily = discharge
143 last_value: 1624.14
144 # 10th setup Rhine
145 header: Rhine_30min_10
146 description: 10th Rhine 30min waterdemand TRUE, load initial
147 set_save: settings_rhine_30min_10.ini
148 changes: calc_evaporation = False; includeIrrigation = True; preferentialFlow = True; CapillarRise = True; includeRunoffConcentration = True; includeWaterBodies = True; includeWaterDemand = True; StepEnd = 100; SpinUp = 30; load_initial = True; initLoad = $(FILE_PATHS:PathInit)/Rhine_20001231.nc
149 adds: OUT_TSS_Daily = discharge; OUT_MAP_TotalAvg = discharge, baseflow
150 last_value: 1553.59
151 # 11th setup Rhine
152 header: Rhine_30min_11
153 description: 11th Rhine 30min with lot of output
154 set_save: settings_rhine_30min_11.ini
155 changes: calc_evaporation = False; includeIrrigation = True; preferentialFlow = True; CapillarRise = True; includeRunoffConcentration = True; includeWaterBodies = True; includeWaterDemand = True; StepEnd = 730; SpinUp = 01/10/2000; load_initial = True; initLoad = $(FILE_PATHS:PathInit)/Rhine_20001231.nc; swAbstractionFrac = -0.7
156 adds: OUT_TSS_Daily = discharge; OUT_TSS_MonthAvg = discharge; OUT_TSS_AnnualAvg = discharge; OUT_TSS_AnnualTot = runoff; OUT_Map_Daily = discharge; OUT_Map_MonthAvg = discharge, Precipitation, runoff; OUT_Map_AnnualAvg = discharge; OUT_MAP_AnnualTot = runoff; OUT_MAP_AnnualEnd = runoff; OUT_MAP_TotalAvg = discharge, baseflow
157 last_value: 1656.99
158 # 12th setup Rhine
159 header: Rhine_30min_12
160 description: 12th Rhine 30min with more exotic output
161 set_save: settings_rhine_30min_12.ini
